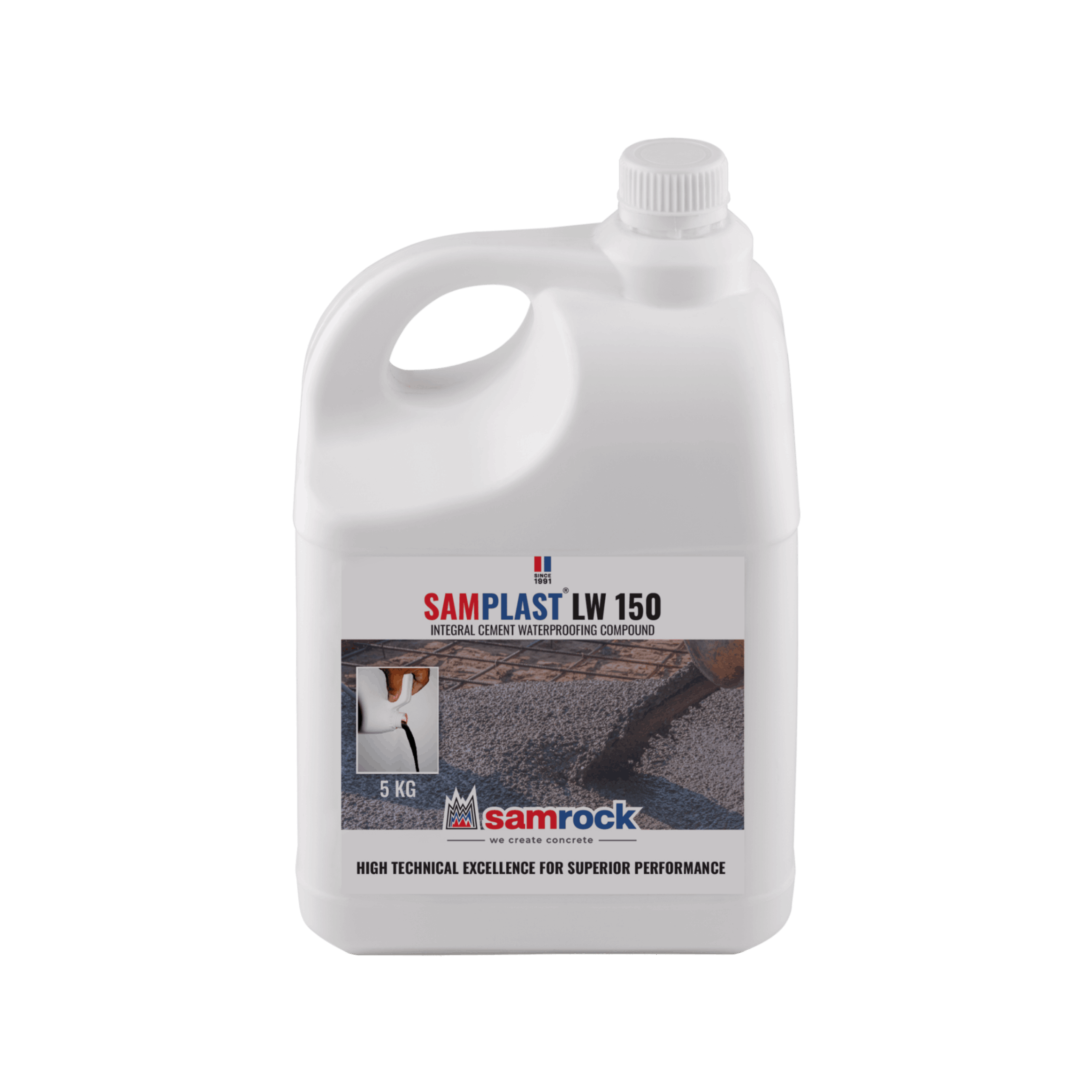

Waterproofing & Curing Compound
SAMPLAST® LW150 is complies with IS : 2645 -2003 and formulated to meet the highest level of quality standard that prevails in the international market.
Packing
1 kg, 5 kg, 20 kg, & 200 kg
Form
Liquid
Base
Sulphonated naphthalene
Color
Brown
Safety
Non-toxic and non-flammable.
Mix preparation:
• Add SAMPLAST® LW150 (150 gm per 50 kg of cement) in water and stir gently.
• Prepare dry-mix of cement, sand and aggregates as usual.
• Add the dry-mix to SAMPLAST® LW150 solution while mixing.
• Use concrete / mortar-mix as usual.
• Ease of use and instant uniform dispersion is achieved due to its liquid form.
• Ensures increased workability of concrete and mortars.
• Reduces water bleeding.
• Can be used with most types of cements including pozzolonic cements except for high alumina
cement.
• Reduces the hydraulic permeability of concrete and mortars up to 90% and thereby enhances life by 10 to 15 years.
• RCC water tanks and storage reservoir
• External plastering
• External masonry walls
• Roof and balcony areas
• Plastering of basements and water tanks
• Small machinery foundations
• Small bund / check dam walls
SAMPLAST ® LW 150 is not recommended for use with structural members like beams and columns and some pre-cast elements particularly where high cement contents are used.

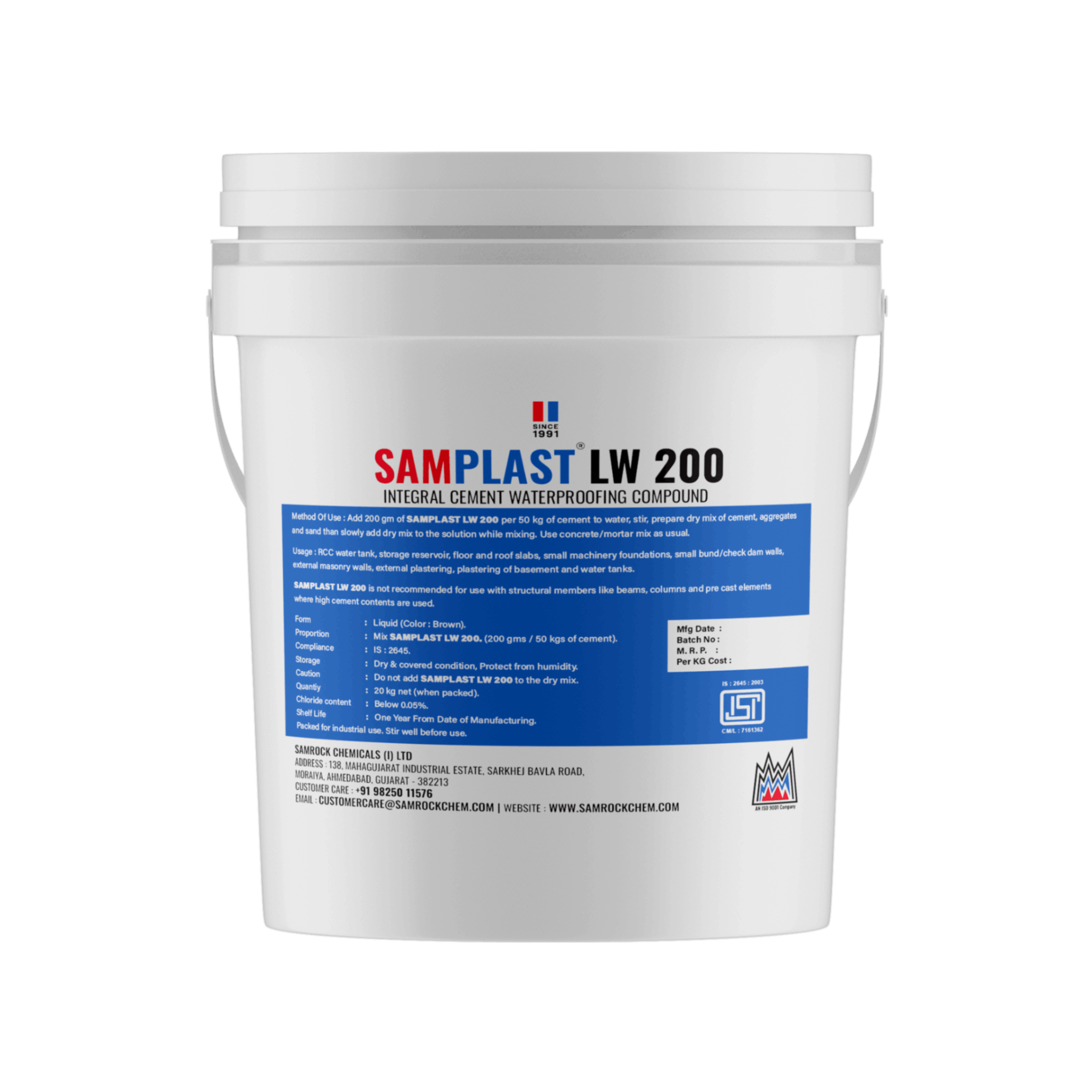

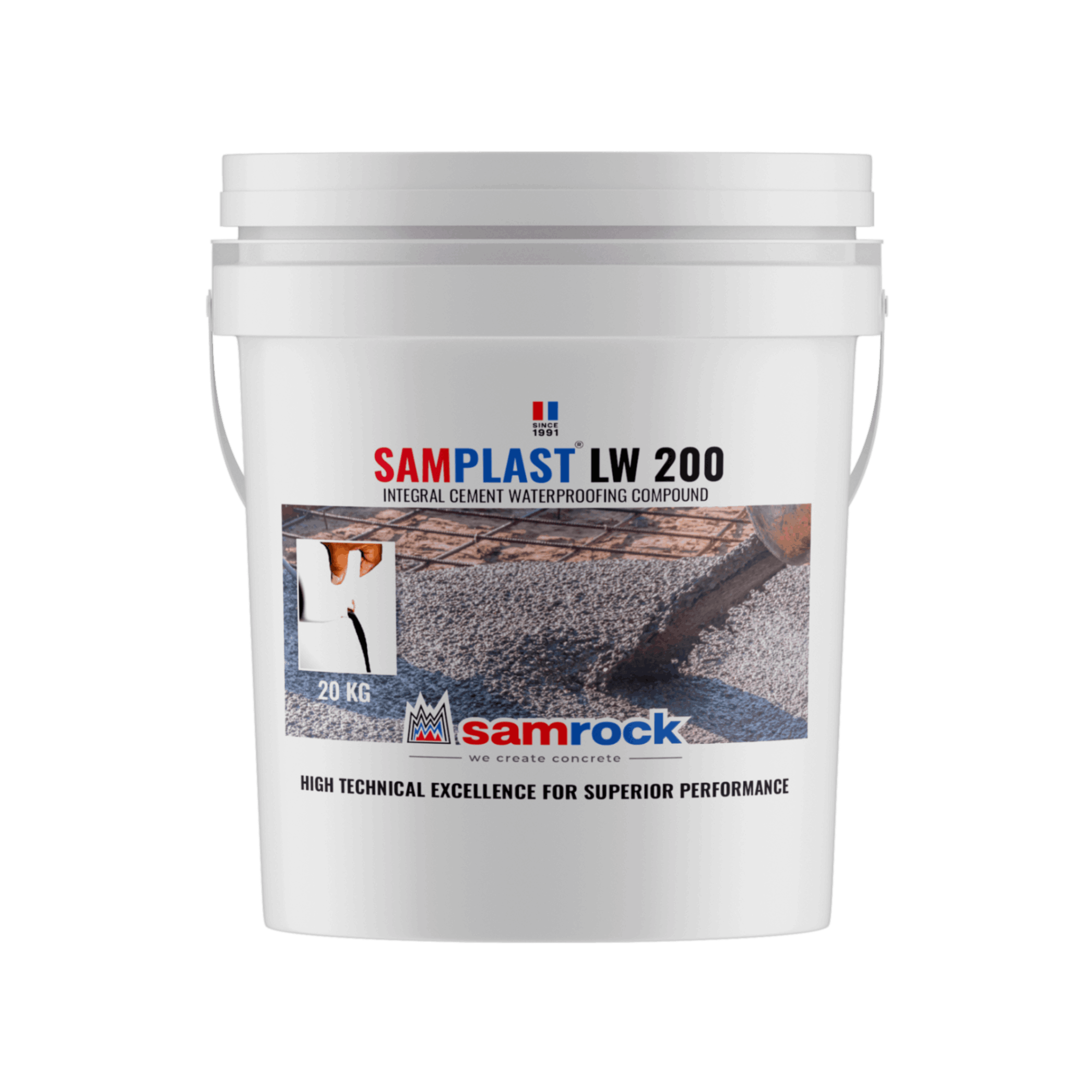

Waterproofing & Curing Compound
SAMPLAST® LW 200 is complies with IS : 2645 -2003 and formulated to meet the highest level of quality standard that prevails in the international market.
Packing
1 kg, 5 kg, 20 kg, & 200 kg
Form
Liquid
Base
Sulphonated naphthalene
Color
Brown
Safety
Non-toxic and non-flammable.
• Add SAMPLAST® LW200 (200 gm per 50 kg of cement) in water and stir gently.
• Prepare dry-mix of cement, sand and aggregates as usual.
• Add the dry-mix to SAMPLAST® LW200 solution while mixing.
• Use concrete / mortar-mix as usual.
• Ease of use and instant uniform dispersion is achieved due to its liquid form.
• Ensures increased workability of concrete and mortars.
• Reduces water bleeding.
• Can be used with most types of cements including pozzolonic cements except for high alumina
cement.
• Reduces the hydraulic permeability of concrete and mortars up to 90% and thereby enhances life by 10 to 15 years.
• RCC water tanks and storage reservoir
• External plastering
• External masonry walls
• Roof and balcony areas
• Plastering of basements and water tanks
• Small machinery foundations
• Small bund / check dam walls
SAMPLAST ® LW 200 is not recommended for use with structural members like beams and columns and some pre-cast elements particularly where high cement contents are used.
Waterproofing & Curing Compound
SAMPLAST® PW is a powder admixture designed to fill natural pores within the concrete or mortar matrix to reduce porosity. It complies with IS : 2645 -2003 and formulated to meet the highest level of quality standard that prevails in the international market.
Packing
50 Pouch of 500 gm each
Form
Powder
Shelf life
12 months at 25°C
Color
White
Safety
Non-toxic and non-flammable.
• Pour SAMPLAST® PW in mixing dry cement in the ratio of 1 packet (0.5 kg) per one bag of cement (50 kg).
• Mix properly to make uniform mixture.
• Add this mixture to the sand / concrete mixer.
• Mix thoroughly and use the mix as usual.
• Improves workability
• It is a high quality water proofing material
• Provides low permeability (13.95%) to water
• RCC water tanks and storage reservoir
• External plastering
• External masonry walls
• Roof and balcony areas
• Plastering of basements and water tanks
• Small machinery foundations
• Small bund / check dam walls
SAMPLAST ® PW is not recommended for use with structural members like beams and columns and some pre-cast elements particularly where high cement contents are used.
Waterproofing & Curing Compound

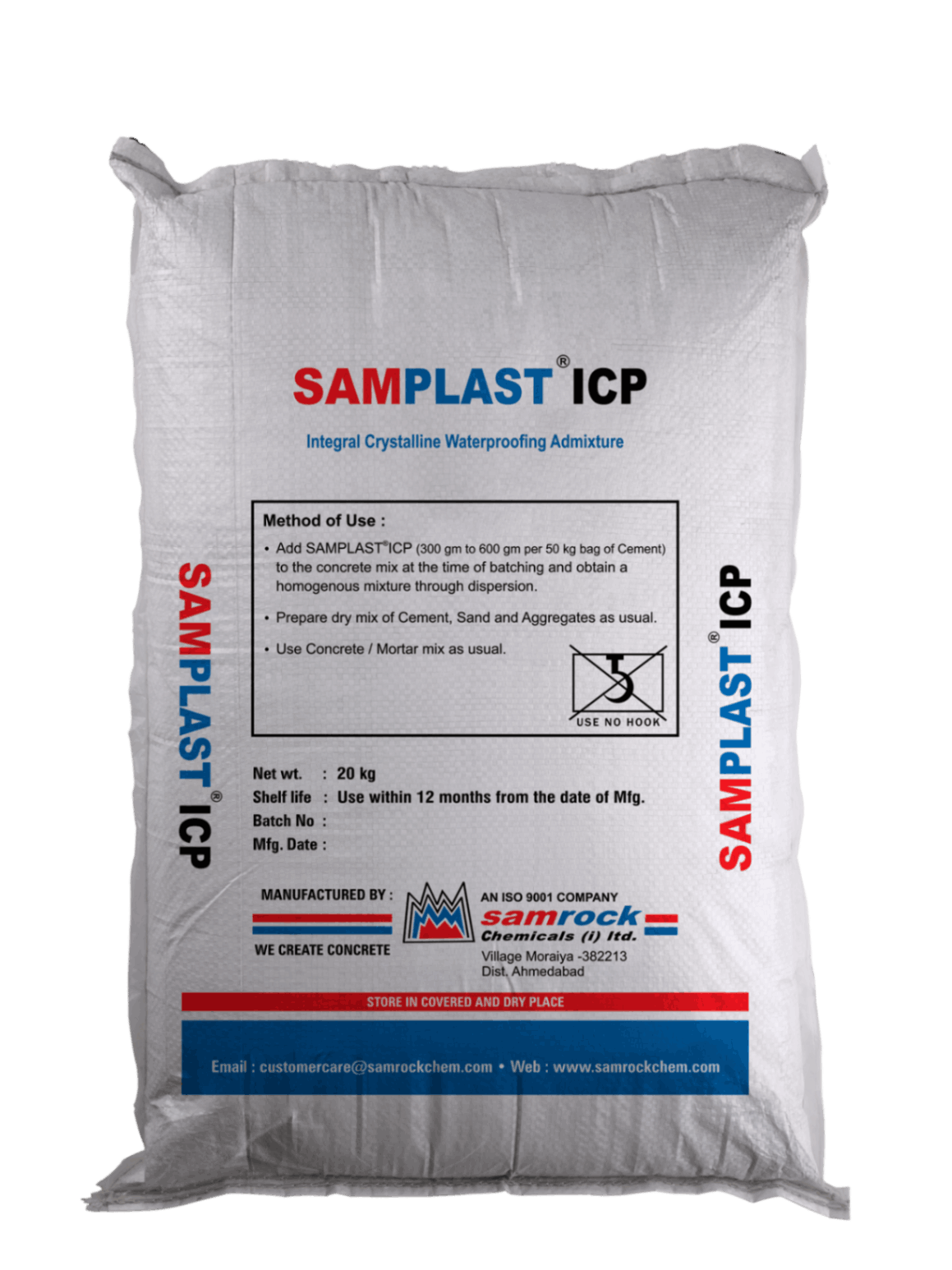

SAMPLAST® ICP is an integral crystalline waterproofing admixture. It consists of portland cement, very fine-treated silica sand and various active proprietary chemicals. It causes a catalytic reaction, while reacting with the moisture in fresh concrete with the by-products of cement hydration, which generates a non-soluble crystalline formation throughout the pores and capillary tracts of the concrete.
Packing
25 kgs HDPE bag
Form
Powder
Storage
To be stored in dry covered condition.
Color
Grey
Safety
Non-toxic and non-flammable. Use gloves.
• Add SAMPLAST® ICP (300 gm to 600 gm per 50 kg of cement) to the concrete-mix at the time of batching and obtain a homogenous mixture for thorough dispersion.
• Prepare dry mix of cement, sand and aggregates as usual.
• Use concrete / mortar-mix as usual.
• Resists extreme hydrostatic pressure from either positive or negative surface of the concrete.
• Seals hairline cracks up to 0.4 mm.
• Allows concrete to breathe.
• Becomes an integral part of the concrete as such it is permanent.
• Less expensive compared to traditional methods.
• RCC water tanks and reservoirs
• Swimming pools, underground vaults
• Sewage & water treatment plants
• Tunnels & subway systems
• Foundations
• Pre-cast, cast-in-place and shotcrete application
• Parking structures
Waterproofing & Curing Compound
SAMBOND® CC is an acrylic polymer-modified cementitious coating admixture available in two components.
Packing
20 kgs bucket (Part I : 3 kgs + Part II : 17 kgs)
Form
Part I: Liquid
Part II: Powder
Base
Acrylic polymer
Color
Part I: White
Part II: Grey
Safety
Non-toxic and non-flammable
Mix preparation
• Pour SAMBOND® CC Part I into a bucket.
• Add required quantity of clean water.
• Start stirring.
• Slowly add SAMBOND® CC Part II, avoiding any lump formation.
• Mix for 2 / 4 minutes.
• Apply the prepared mix on the substrate surface.
• Provides a protective waterproof coating.
• Resists water pressure upto 7 metres head.
• Can be applied directly to concrete and masonry with minimum surface preparation.
• Provides high resistance to carbon dioxide and chloride iondiffusion.
• Water tanks, reservoirs and sealing tie bar holes to ensure water tightness.
• For walls and bridges to provide damp proofing.
• To fill holes, cracks, imperfections, honeycomb, rough and defective areas in concrete structures.

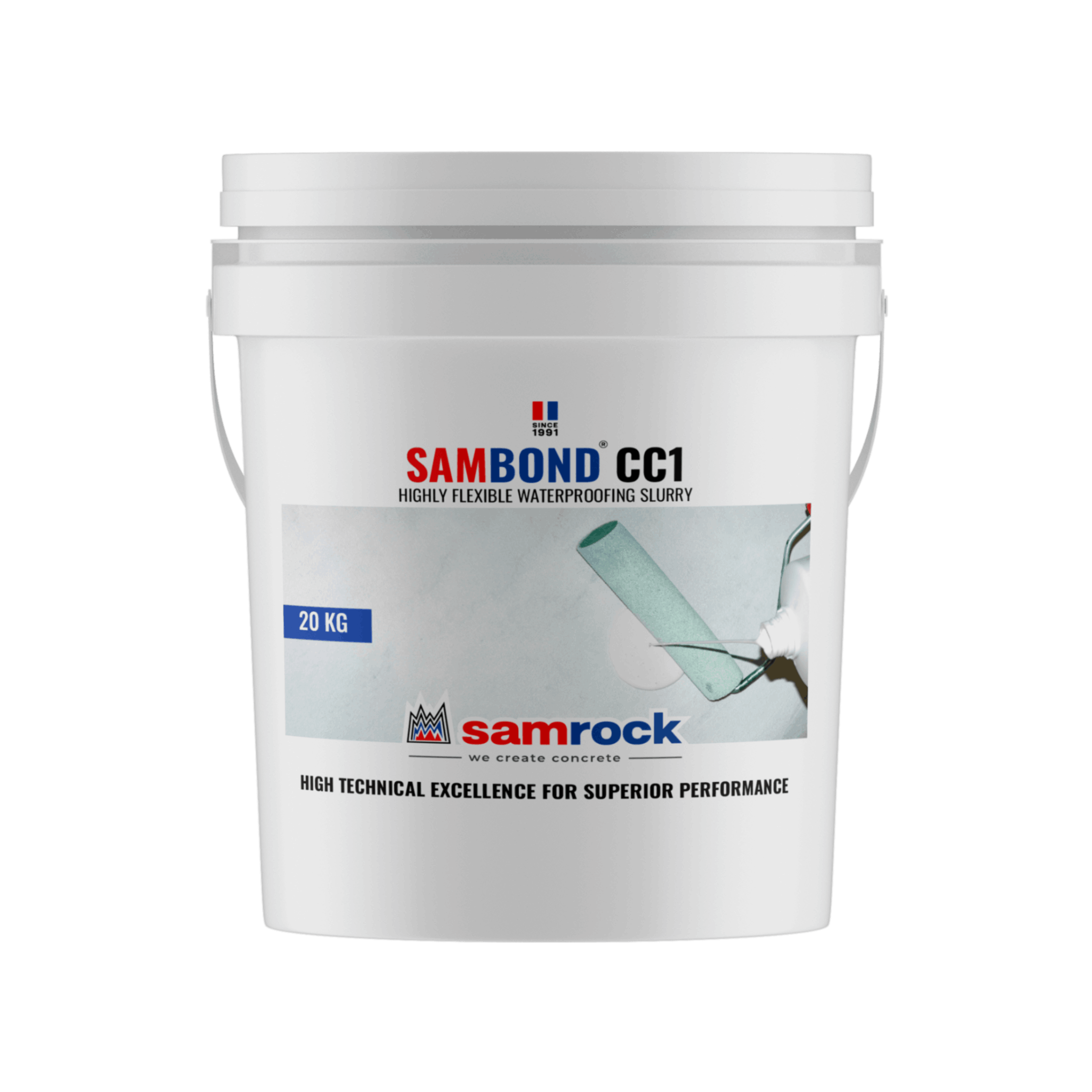

Waterproofing & Curing Compound
SAMBOND® CC1 is single-component, acrylic-modified coating which forms a tough, rubbery film. This bridges over fine cracks, and is suitable for repair works.
Packing
1-kg Jerrycan,
5-kg Jerrycan,
20-kg Bucket
Form
Semi-liquid
Base
Acrylic
Color
White
Safety
Non-toxic and non-flammable
• Surface to be wetted.
• Apply 3 coats of SAMBOND® CC1 as under:
• For 1st coat only add water (half the quantity of SAMBOND® CC1).
• Keep 2-6 hours interval in between 2 coats.
• 2 nd and 3 rd coats without adding water.
• Apply with brush.
• Provides quite efficient protection to concrete.
• Impermeable to water (without pressure) (prevent penetration of water) but at the same time
permeable to water vapour.
• Suppresses carbonation.
• Hinders chloride penetration.
• Resists thermal and ultra violet ageing.
• Damp proofing of houses.
• Repair works for waterproofing.
• For walls, terraces and bridges to provide damp proofing.
• To fill holes, cracks, imperfections, honeycomb, rough and defective areas in concrete.

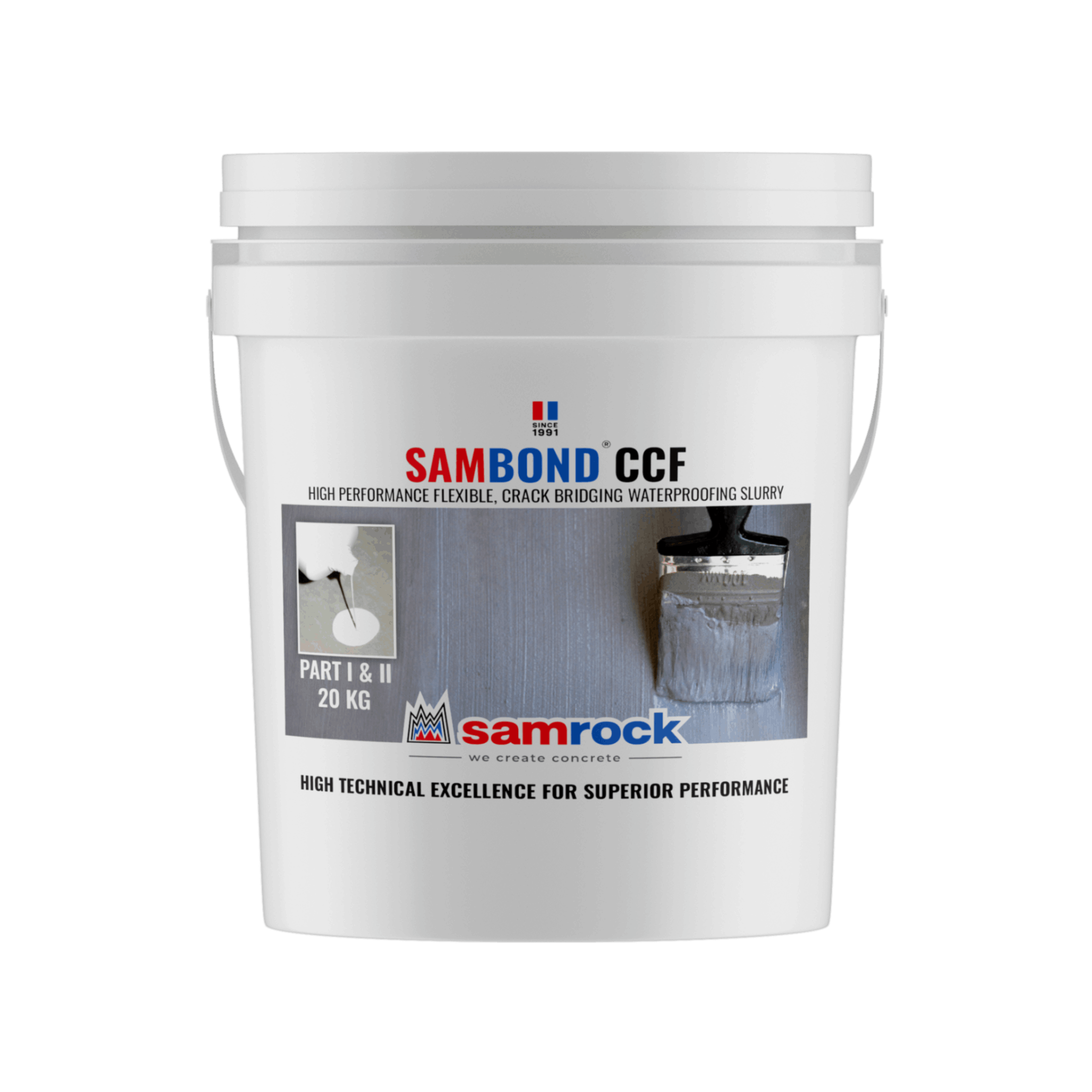

Waterproofing & Curing Compound
SAMBOND® CCF is a two-component, acrylic-modified cementitious coating which forms a tough, elastomeric film.
Packing
20 kg bucket (Part I: 5 kg + Part II: 15 kg)
Form
Part I: White liquid
Part II: Specially graded grey
cementitious powder
Base
Acrylic polymer
Color
Grey (mixed material)
Safety
Non-toxic and non-flammable
• Pour SAMBOND® CCF Part I into a bucket and add water as mentioned in brochure.
• Start stirring and slowly add SAMBOND® CCF Part II, avoiding any lump formation.
• Mix for 2/4 minutes.
• Apply the prepared mix on the substrate surface.
• Keep 2-6 hours interval in between 2 coats.
• Apply with brush.
• Provides quite efficient protection to concrete
• Impermeable to water upto 7 mt water head
• Prevents penetration of water but at the same time permeable to water vapour
• Suppresses carbonation and hinders chloride penetration
• High resistance to the effect of long-term weathering, and UV attack
• Non-toxic and ideal for potable water tanks
• Flexible, with thermal expansion similar to concrete, good crack accommodation capacity
• Excellent bond to concrete & masonry
• Minimum surface preparation needed &costs low labour
• Damp proofing of houses, repair work for waterproofing.
• For walls, terraces and bridges to provide damp proofing.
• To fill holes, cracks, imperfections, honeycomb, rough and defective areas in concrete.

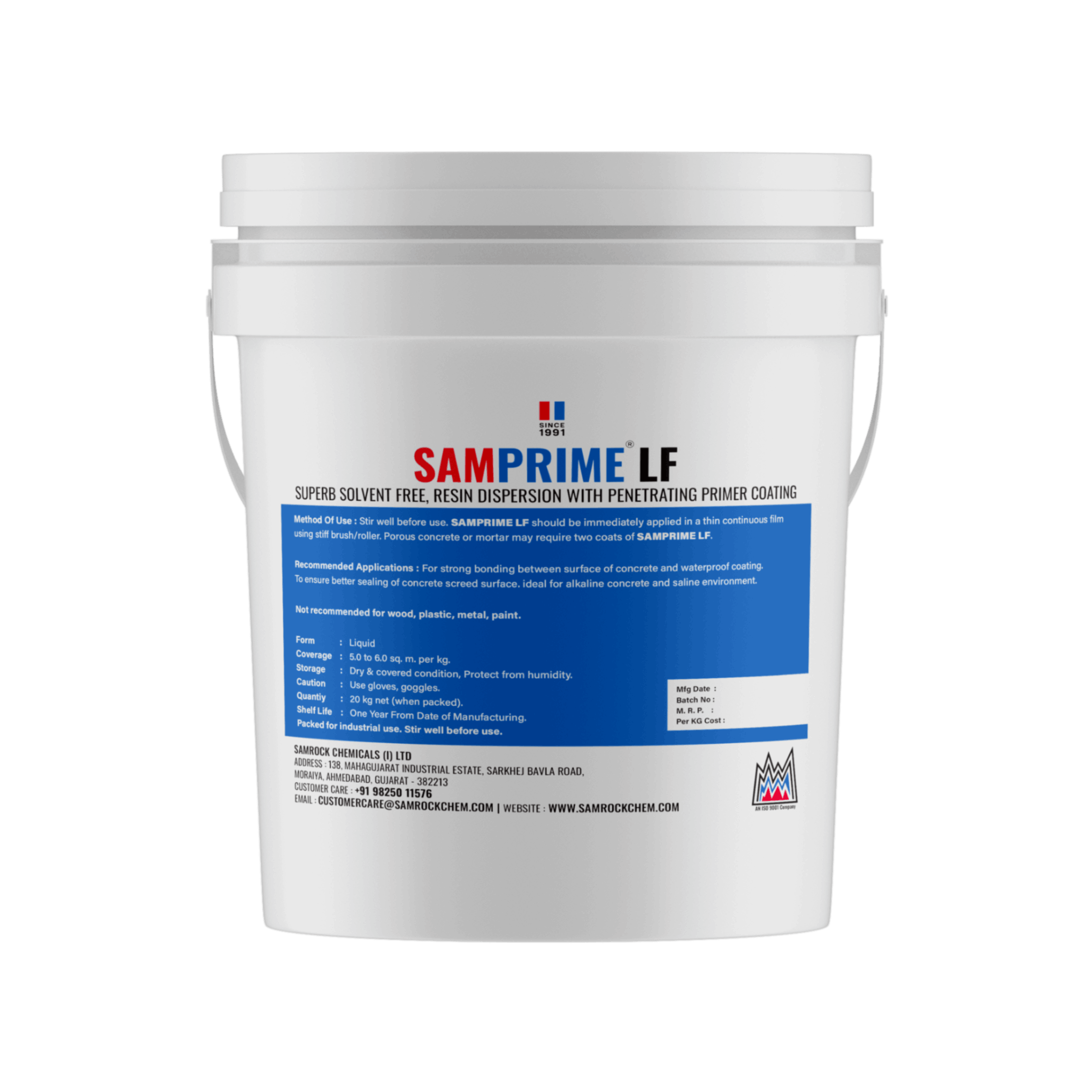

Waterproofing & Curing Compound
SAMPRIME® LF is a high quality, solvent-free artificial resin dispersion used as sealing agent for absorbent substrates for waterproofing, having excellent penetration properties.
Packing
1 kg, 5 kg and 20 kg
Form
Liquid
Base
Resin
Color
Colourless
Safety
Use gloves, goggles
• Stir well before use.
• SAMPRIME® LF should be immediately applied in a thin continuous film using stiff brushes / rollers.
• Porous concrete or mortar may require two coats of SAMPRIME® LF.
• Excellent penetration in surface and provide superb bonding between base substrate and waterproof
coating.
• Coating film is thin but flexible with excellent adhesion to concrete, cement-based mortar and
cement screed.
• Coating film eliminates porous in concrete surface.
• Highly ideal for alkaline concrete and saline environment.
• For strong bonding between surface of concrete and waterproof coating.
• To ensure better sealing of concrete screed surface.
• Not recommended for wood, plastic metal, paint.
Waterproofing & Curing Compound
SAMPRIME® AR is a high quality, artificial resin dispersion used as sealing agent for absorbent substrates for waterproofing with excellent penetration properties.
Packing
1 kg, 5 kg and 20 kg
Form
Liquid
Base
Resin
Color
White
Safety
Use gloves, goggles
• Stir well before use.
• SAMPRIME® AR should be immediately applied in a thin continuous film using stiff brush / roller.
• Porous concrete or mortar may require two coats of SAMPRIME® AR.
• Excellent penetration in surface and provides superb bonding between base substrate and waterproof coating.
• Coating film is thin but flexible with excellent adhesion to concrete, cement-based mortar and cement screed.
• Coating film eliminates porous in concrete surface.
• Exceptionally ideal for alkaline concrete and saline environment.
• For strong bonding between surface of concrete and waterproof coating.
• To ensure better sealing of concrete screed surface.
• Not recommended for wood, plastic metal, paint.

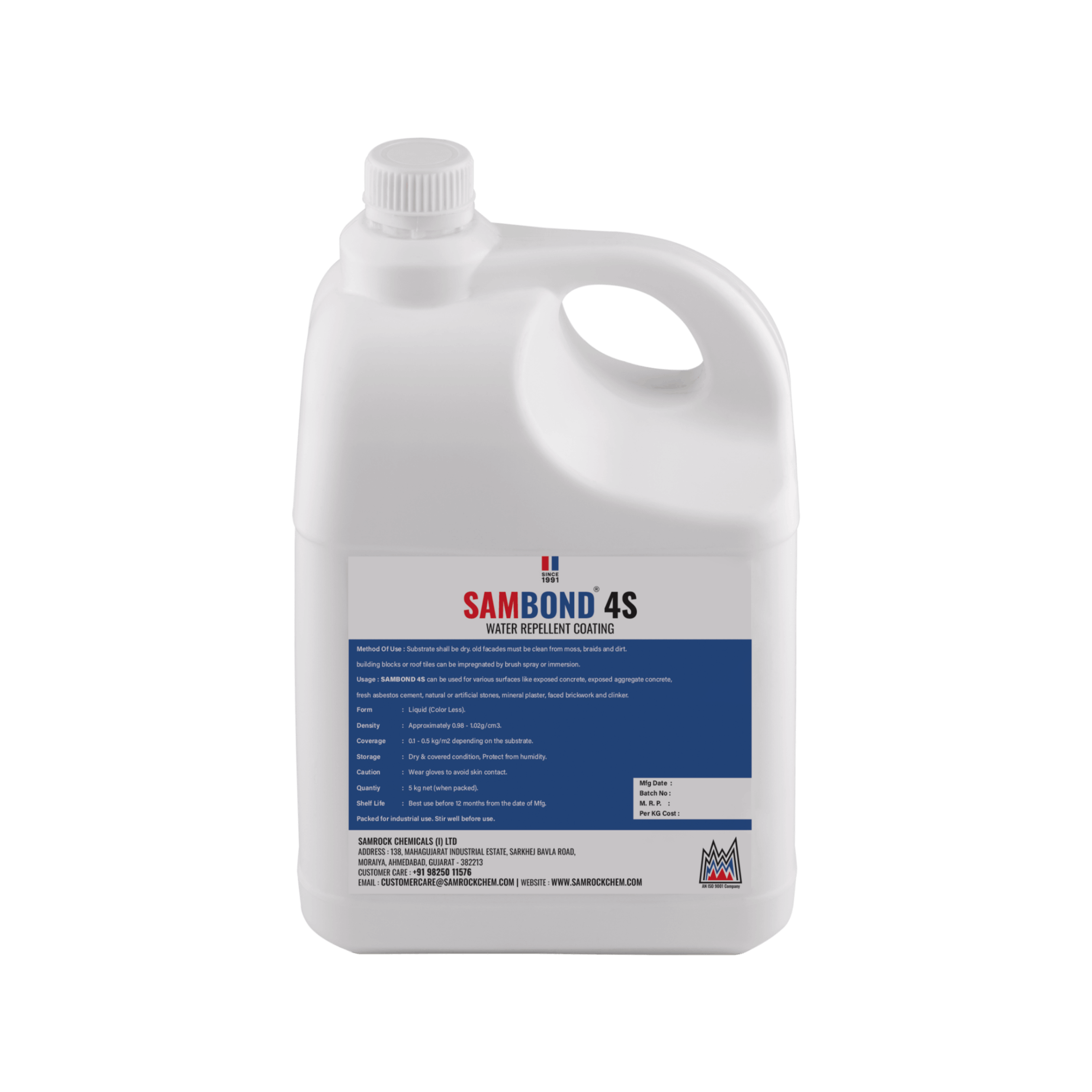

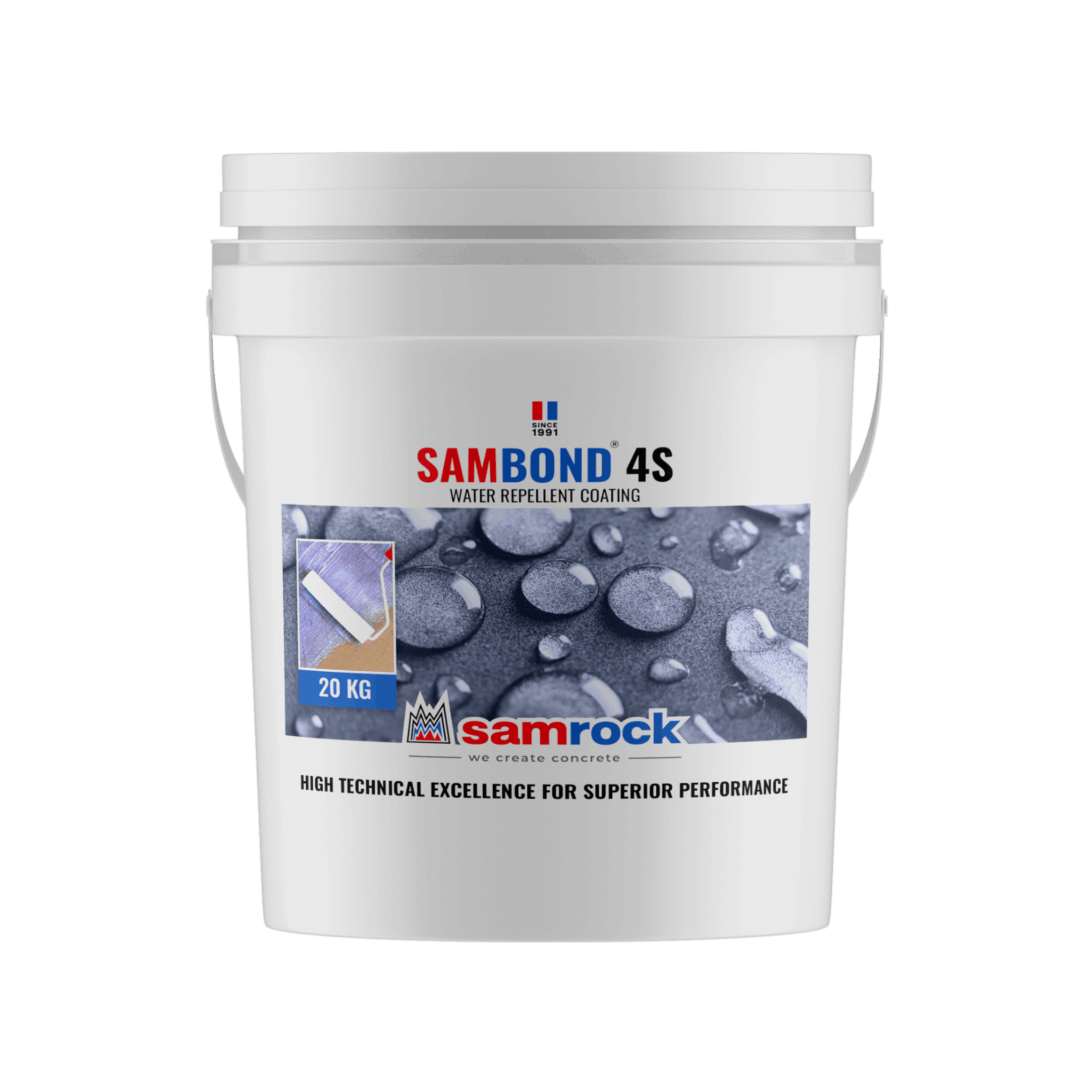

Waterproofing & Curing Compound
SAMBOND® 4S is an optimally constructed impregnation for facades with extremely high alkali-resistance and water-repelling properties for a long time duration.
Packing
5 kg Jerrycan,
20 kg Bucket
Form
Liquid
Density
Approximately 0.98-1.02 g/cm3
Color
Colourless
Safety
Wear gloves to avoid skin contact
• Substrate shall be dry. Fresh concrete can be treated even 24 hours after dismantling of form work, but it should be regarded that the penetration i.e. depth of SAMBOND® 4S gets higher with the dryness of substrate.
• Cracks and tears of size above 0.3 mm must be levelled-out before treating. Old facades must be
cleaned from moss, braids and dirt.
• Prefabricated parts as well as building blocks or roof-tiles can be impregnated by brush, spray or
immersion.
• Concrete can be impregnated even 24 hours after dismantling the formwork.
Humidity-protection:
• With SAMBOND ® 4S the greater part of salt-blooming, frost damages, humid walls, erosion and other damages, which are caused by humidity into brickwork, can be avoided.
Clean facades:
• A new or fresh cleaned facade, which has been impregnated with SAMBOND® 4S keeps longer dry and clean.
• The siloxane-effect prevents penetration of dust in the façade. Mould fungus and moss are prevented for a long time.
Less costs for heating:
• In many buildings a lot of heating energy gets lost through the walls. By absorption of humidity in the brickwork from outside the cladding, loss of heat gets even worse.
• The saving of heat by impregnation of the façade with SAMBOND® 4S is as a result of low absorption of humidity of the outer wall.
• Facades impregnated with SAMBOND® 4S stay permeable for water vapour and become breathable.
• Exposed concrete, exposed aggregate concrete, gas-concrete, fresh asbestos cement, natural
stones, artificial stones, all sorts of mineral plaster, faced brickwork, clinker.
• As a primer for cement paint, artificial resin paint and dispersion paint.
Waterproofing & Curing Compound
SAMCURE® WHITE is a water and wax-based low-viscosity concrete curing compound.
Packing
220 kg drums
Form
Liquid
Base
Water and wax
Color
White
Safety
Non-toxic and non-flammable. Use gloves.
